Day 1 – Spatial & Spatio-temporal Modelling

Olatunji Johnson

Introduction

About me

  • Completed a Bachelor’s degree in Statistics at FUTA
  • Master’s in Mathamatical Sciences at AIMS-Tanzania
  • PhD in Statistics and Epidemiology at University of Lancaster
  • Postdoc at University of Lancaster
  • Lecturer in Statistics at the University of Manchester

Overview of the 3 days

  • Spatial and spatio-temporal analysis (different likelihoods)
  • Joint modelling of multiple malaria processes
  • Non-stationary spatial processes
  • Hybrid machine learning + geostatistical models

Linear Regression

  • Goal: Model a continuous response variable as a linear function of predictors.
  • Model \(Y = X \beta + \epsilon\), where \(\epsilon \sim N(0, \sigma^2)\)
  • Key Assumption
    • Linearity
    • Independence
    • Homoscedasticity (constant variance)
    • Normality of errors

Generalized Linear Models (GLMs)

  • Extension of linear models to handle non-normal response distributions.
  • Three components:
    • Random component: Distribution from the exponential family (e.g., Binomial, Poisson).
    • Systematic component: Linear predictor \(\eta = X\beta\).
    • Link function: Relates \(E(Y)\) to \(\eta\).
  • Examples:
    • Logistic regression for binary outcomes – logit link function
    • Poisson regression for count data – log link function

Why Spatial Statistics?

  • Spatial Dependence:
    Observations collected at nearby locations are often more similar than those farther apart.

  • Ignoring Spatial Structure:

    • Leads to biased parameter estimates.
    • Underestimates uncertainty.
    • Misses important spatial patterns.

  • Applications:

    • Disease mapping
    • Environmental monitoring
    • Agricultural field trials

  • Goal:
    Account for spatial correlation to improve prediction and inference.

Spatial Analysis

Spatial Statistics

Cressie 1991

Gelfand 2010

Classification of spatial statistics

Cressie’s book classifies spatial statistics according to data format:

  1. Geostatistical data
  2. Lattice data
  3. Point patterns

Gelfand’s book classifies spatial statistics according to spatial variation:

  1. Discrete spatial variation: Gaussian Markov Random Field (GMRF)
  2. Continuous spatial variation: Gaussian Random Field (GRF)

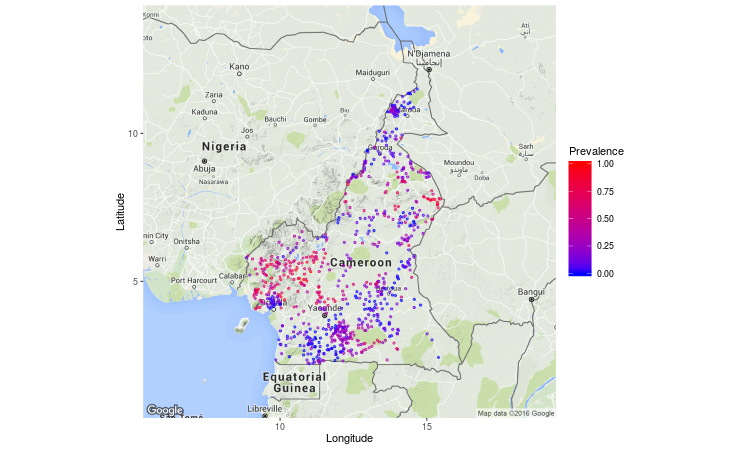

Geostatistical data: River blindness in Cameroon

Geostatistical data: River blindness in Cameroon

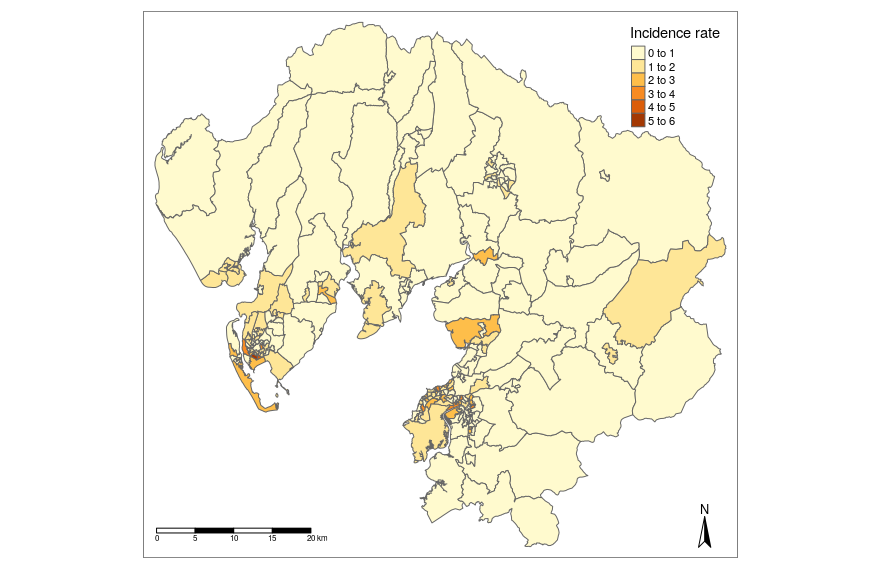

Lattice Data: COPD emergency admission

Lattice data: COPD emergency admission

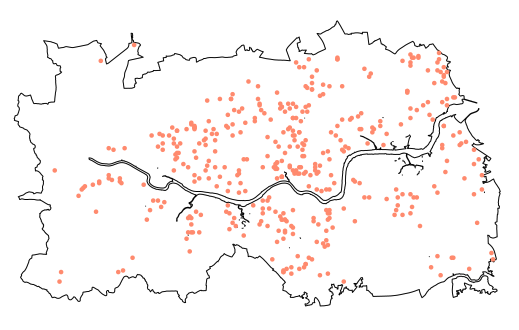

Point pattern: Primary biliary cirrhosis data

Point pattern: Primary biliary cirrhosis data

Model-based Geostatistics

Modelling Geostatistical Data – Model-based Geostatistics

  • The term Model-based Geostatistics (MBG) was coined by Peter Diggle in 1998 (Diggle, Tawn, and Moyeed 1998; Diggle and Giorgi 2019).
  • MBG applies general principles of statistical modelling and inference to the analysis of geostatistical data.
  • It emphasises the use of likelihood-based inference.
  • and the use of latent spatial process (Gaussian or stochastic process)

Standard MBG model

\[ Y_i = \beta_0 + \underbrace{\beta_1 d_1(s_i) + \beta_2 d_2(s_i)}_{\text{explained}} + \underbrace{S(s_i) + Z_j}_{\text{unexplained}}, \]

where

  • \(\beta_0\), \(\beta_1\), and \(\beta_2\) are regression coefficients;
  • \(d_1(x)\) and \(d_2(x)\) denote covariates/predictors at location \(x\);
  • \(S(s)\) is the stochastic spatial process;
  • \(Z_j\) represents measurement error.

Modelling \(S(s)\) and \(Z_j\)

  • \(Z_i \sim N(0, \tau^2)\)
  • We assume that \(S(s)\) is a zero-mean stationary and isotropic Gaussian Random Field. i.e \(S \sim \text{MVN}(0, \Sigma)\)
  • The \((i,j)\)th entry of \(\Sigma\) is \[ \Sigma_{ij} = \operatorname{Cov}\big(S(s_i), S(s_j)\big) = \sigma^2 r(u) \]
  • \(u = \|s_i - s_j\|\) is the Euclidean distance between locations \(s_i\) and \(s_j\)
  • How do we choose parametric correlation function \(r(\cdot)\)?

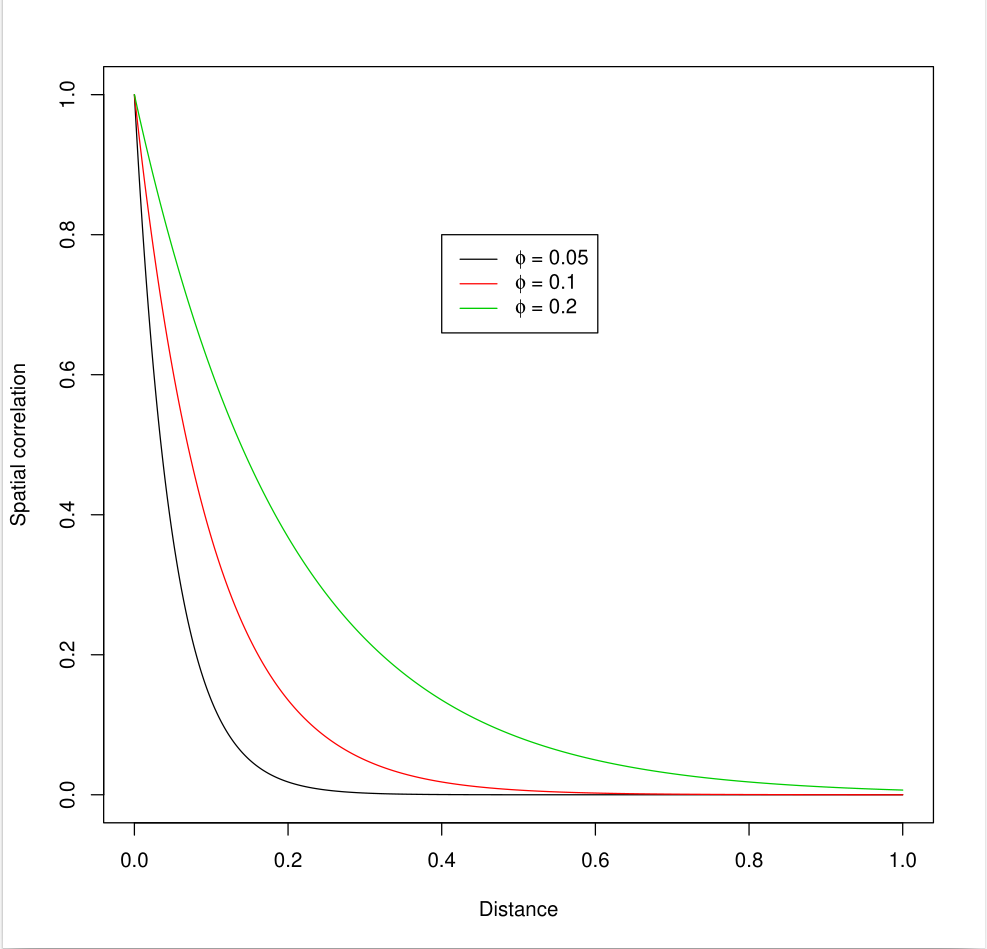

The Matérn correlation function

\[ r(u; \rho, \nu) = \frac{1}{2^{\nu-1}\Gamma(\nu)} \left(\frac{u}{\rho}\right)^\nu K_\nu\!\left(\frac{u}{\rho}\right), \]

  • \(K_\nu(\cdot)\): modified Bessel function of order \(\nu\)

  • Interpretation

    • \(\nu\) determines the smoothness: \(\nu > r \Rightarrow S(s)\) is \(r\) times differentiable
    • \(\rho\) determines the scale/range of spatial correlation

  • Special cases

    • \(\nu = 0.5 \Rightarrow r(u) = \exp\{-u/\rho\}\)
    • \(\nu \to \infty \Rightarrow r(u) = \exp\{-(u/\rho)^2\}\)

  • Often sufficient to choose \(\nu \in \{0.5, 1.5, 2.5\}\)

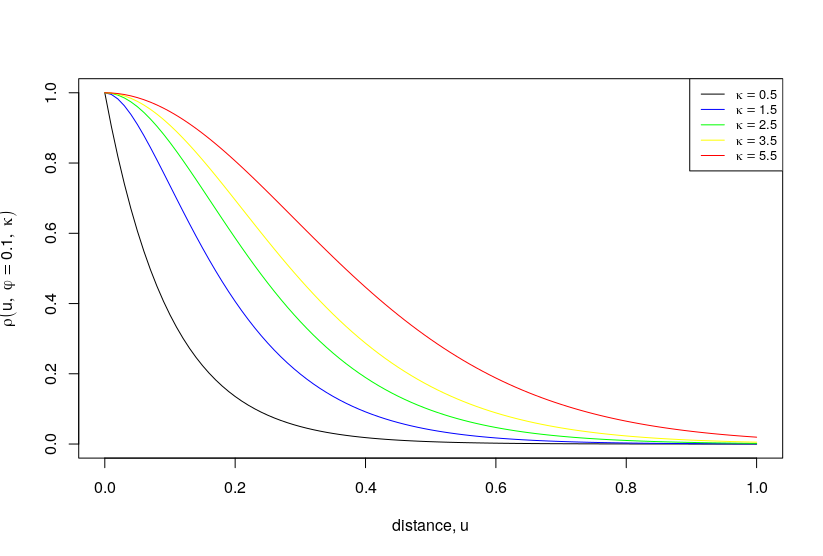

Matérn correlation function – \(\nu\)

\[ r(u; \rho, \nu) = \frac{1}{2^{\nu-1}\Gamma(\nu)} \left(\frac{u}{\rho}\right)^\nu K_\nu\!\left(\frac{u}{\rho}\right), \]

Exponential correlation function: \(r(u; \rho, 0.5) = \exp\{-u/\rho\}\)

The scale of the spatial correlation – \(\rho\)

Do we need the process \(S(s)\)?

  • Regression residuals
    \[ \hat{r}_i = Y_i - \hat{Y}_i \] from a GLM

  • Each \(\hat{r}_i\) estimates
    \[ S(s_i) + Z_i \]

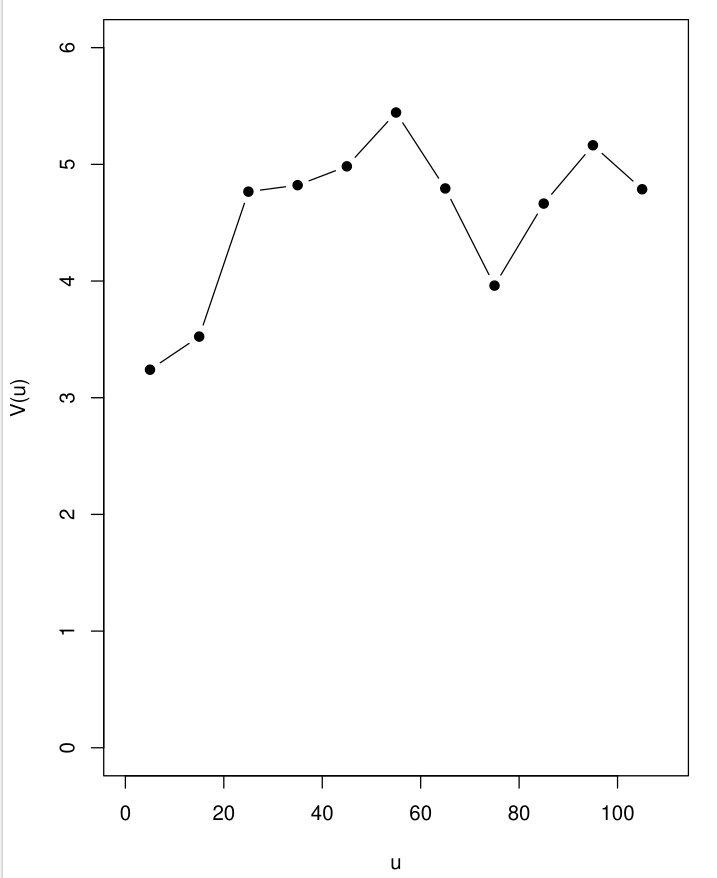

The variogram

  • Empirical variogram \[ \hat{V}(u) = \frac{1}{2|N(u)|}\sum_{(i,j)\in N(u)}(\hat{r}_i-\hat{r}_j)^2 \]

  • where
    \[ N(u)=\{(i,j): \lVert s_i-s_j\rVert=u\} \]

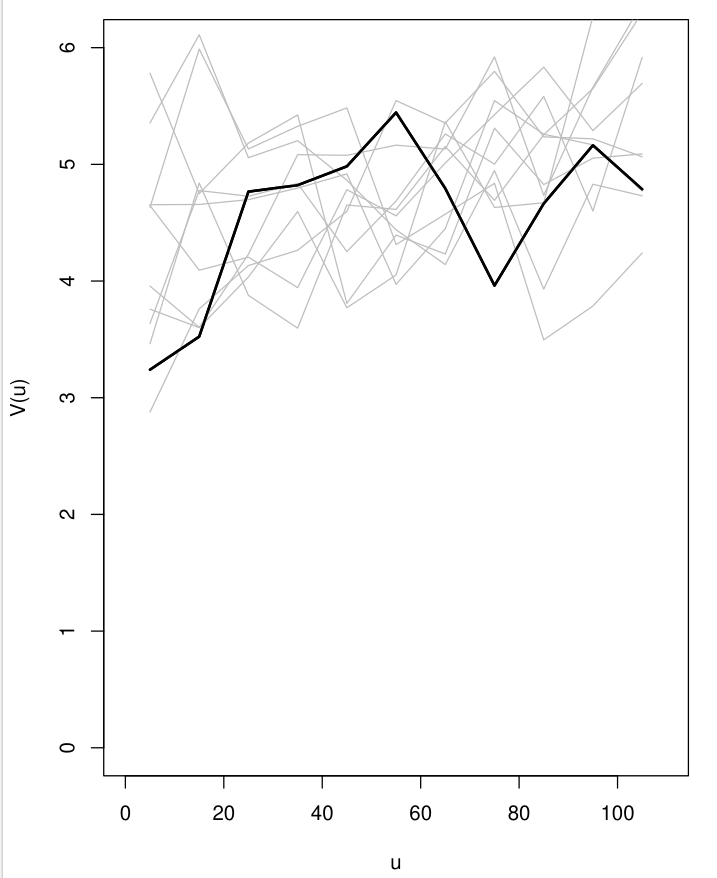

Confirming existence of spatial correlation

  1. Randomly permute the \(\hat{r}_i\) while holding the locations \(x\) fixed
  2. Compute the empirical variogram using the permuted \(\hat{r}_i\)
  3. Repeat steps 1–2 \(B\) times
  4. Use the resulting \(B\) variograms to compute pointwise 95% tolerance bands at each distance bin
  5. If the observed variogram lies outside the 95% band, this indicates residual spatial correlation

Inference: Maximum likelihood estimation

  • Multivariate Gaussian distribution
    \[ Y \sim \text{MVN}(D\beta, \sigma^2 R + \tau^2 I) \]

    • \(D\): matrix of covariates, \([D]_{ik} = d_k(s_i)\)
    • \(R\): spatial correlation matrix,
      \([R]_{ij} = r(u_{ij})\), with \(u_{ij} = \|s_i - s_j\|\)

  • Fitting process

    1. Initialise \(\beta\) (e.g. using ordinary least squares)
    2. Initialise \(\theta\) (e.g. using the empirical variogram)
    3. Maximise \[ \ell(\theta) = \log\{f(y; \beta, \theta)\}, \] where \(f(\cdot; \beta, \theta)\) is the multivariate Gaussian density

Beyond Gaussian responses

So far, we assumed: \[ Y \sim \text{MVN}(D\beta, \sigma^2 R + \tau^2 I) \]

However, many geostatistical datasets are:

  • Binary (presence / absence)
  • Counts (number of cases)
  • Rates or proportions

A Gaussian likelihood is no longer appropriate

Separating data and process models

Model-based geostatistics distinguishes between:

  • Observation model (likelihood): \[ Y_i \mid \eta_i \sim \pi(y_i \mid \eta_i) \]

  • Latent process model: \[ \eta_i = X_i \beta + S(s_i) + Z_i \]

Key idea:

  • Non-Gaussian data
  • Gaussian latent structure

Common likelihoods in practice

  • Gaussian \[ Y_i \mid \eta_i \sim N(\eta_i, \sigma^2) \] Continuous measurements (e.g. pollution levels)

  • Binomial \[ Y_i \mid \eta_i \sim \text{Binomial}(n_i, p_i), \qquad \text{logit}(p_i) = \eta_i \] Prevalence survey data

  • Poisson \[ Y_i \mid \eta_i \sim \text{Poisson}(\lambda_i), \qquad \log(\lambda_i) = \eta_i \] Disease counts, event data

Computational challenges

For non-Gaussian likelihoods:

  • The marginal likelihood requires: \[ L(\theta) = \int \pi(y \mid S, \theta)\pi(S \mid \theta)\,dS \]

  • High-dimensional integral over latent field \(x\)

  • No closed-form solution

Consequences:

  • Maximum likelihood is expensive
  • Bayesian inference via MCMC is slow

Classical solutions and limitations

  • Laplace approximation
  • Penalised quasi-likelihood (PQL)
  • MCMC-based Bayesian inference

Limitations:

  • Poor scalability for large spatial fields
  • Long runtimes
  • Difficult model exploration

Key takeaway

We want:

  • Flexible likelihoods (Binomial, Poisson, etc.)
  • Spatial and spatio-temporal random effects
  • Bayesian inference
  • Computational efficiency

This motivates Integrated Nested Laplace Approximation (INLA)

From likelihoods to INLA

Hierarchical models setup:

  • Data likelihood: possibly non-Gaussian
  • Latent field: Gaussian with spatial dependence
  • Hyperparameters: low-dimensional

This class of models is known as Latent Gaussian Models

INLA is designed specifically for this class

Why INLA?

  • Fully Bayesian inference for latent Gaussian models is often computationally expensive
  • Markov chain Monte Carlo (MCMC):
    • Accurate but slow for large spatial datasets
    • Poor scaling with dimension of latent field
  • INLA provides:
    • Deterministic (non-sampling) approximation
    • Orders-of-magnitude speed-ups
    • Accurate marginal posterior distributions

Latent Gaussian models

INLA is designed for latent Gaussian models (LGMs):

\[ y_i \mid \eta_i, \theta \sim \pi(y_i \mid \eta_i, \theta), \qquad \eta = A S \]

where

  • \(S \sim \mathcal{N}(0, Q(\theta)^{-1})\) is a latent Gaussian field
  • \(A\) is a known design / projection matrix
  • \(\theta\) are low-dimensional hyperparameters

Examples of \(S\):

  • Spatial Gaussian random fields
  • Temporal effects
  • Random effects and smoothers

Key idea: sparsity

  • Latent field \(S\) is modelled as a Gaussian Markov Random Field (GMRF)
  • GMRFs have sparse precision matrices \(Q(\theta)\)

Why this matters:

  • Sparse matrix algebra is fast
  • Enables scalable inference for large spatial problems
  • Crucial for INLA’s computational efficiency

Gaussian Markov Random Fields (GMRFs)

A Gaussian Markov Random Field (GMRF) is a Gaussian random vector with conditional independence structure.

Let
\[ \mathbf{S} = (S_1,\dots,S_n)^\top \sim \mathcal{N}(0, Q^{-1}) \]

where:

  • \(Q\) is the precision matrix
  • Zeros in \(Q\) encode conditional independence

Markov property (key idea)

For a GMRF:

\[ Q_{ij} = 0 \quad \Longleftrightarrow \quad S_i \;\perp\!\!\!\perp\; S_j \mid \mathbf{S}_{-ij} \]

Interpretation:

  • Each location depends only on its neighbours
  • No long-range conditional dependence

Stage 1: Hyperparameter inference

Goal: \[ \pi(\theta \mid y) \propto \frac{\pi(y \mid S, \theta)\pi(S \mid \theta)\pi(\theta)} {\pi(S \mid y, \theta)} \]

  • INLA uses a Laplace approximation to integrate out \(S\)
  • Produces an accurate approximation to: \[ \pi(\theta \mid y) \]

Key point:

  • \(\theta\) is low-dimensional → numerical optimisation is feasible

Stage 2: Latent field given \(\theta\)

  • Conditional on \(\theta\), INLA approximates: \[ \pi(S \mid \theta, y) \]

  • Approximation:

    • Gaussian
    • Centered at the mode of the conditional posterior
    • Uses local curvature (Hessian)

This step exploits:

  • Gaussian structure of \(S\)
  • Sparse precision matrix

Stage 3: Marginal posteriors

Final goal: \[ \pi(S_i \mid y), \qquad \pi(\theta_j \mid y) \]

INLA computes: \[ \pi(S_i \mid y) = \int \pi(S_i \mid \theta, y)\,\pi(\theta \mid y)\,d\theta \]

  • Integration performed numerically

  • Output:

    • Marginal posterior means
    • Credible intervals
    • Full marginal densities

GRF vs GMRF: concept vs computation

Lindgren, Rue, and Lindström (2011) provides the link between the two.

  • Gaussian Random Field (GRF):
    • Defined on a continuous spatial domain
    • Used for geostatistical modelling
    • Dense covariance structure
  • Gaussian Markov Random Field (GMRF):
    • Defined on a finite set of locations
    • Sparse precision matrix
    • Computationally efficient

Key point:

In INLA, a GMRF is used as a computational approximation to a continuous GRF

Spatial modelling in INLA: SPDE approach

  • Continuous Gaussian random fields are represented via: Stochastic Partial Differential Equations (SPDEs)

Key ideas:

  • Start with a Matérn GRF (continuous)
  • Approximate it on a triangulated mesh
  • Obtain a computational GMRF
  • Retain Matérn covariance structure

Benefits:

  • Sparse precision matrix
  • Fast Bayesian inference with INLA

Why the SPDE approach?

  • In geostatistics, we often model spatial dependence using Gaussian random fields (GRFs) with Matérn covariance

  • For observations at locations \(s_1, \dots, s_n\):

    • Covariance matrix is dense
    • Computational cost is \(\mathcal{O}(n^3)\)

This becomes infeasible for large spatial datasets

Gaussian random fields

A spatial Gaussian random field is defined as

\[ S(s) \sim \text{GRF}(0, C(\cdot)) \]

with covariance function: \[ \text{Cov}\{S(s), S(s')\} = C(\|s - s'\|) \]

  • The Matérn family is widely used
  • Defined on a continuous spatial domain

From covariance to SPDE

A key result (Whittle, 1954):

A Matérn GRF is the solution to the SPDE: \[ (\kappa^2 - \Delta)^{\alpha/2} S(s) = \mathcal{W}(s), \]

where:

  • \(\Delta\) is the Laplacian operator
  • \(\mathcal{W}(s)\) is Gaussian white noise
  • Parameters \((\kappa, \alpha)\) control range and smoothness

Matérn parameters vs SPDE parameters

We often describe a Matérn GRF using:

  • Range \(\rho\): distance where correlation becomes small
  • Marginal standard deviation \(\sigma\)
  • Smoothness \(\nu\)

INLA/SPDE uses a different (equivalent) parameterisation:

  • \(\kappa\): controls the range
  • \(\tau\): controls the marginal variance
  • \(\alpha = \nu + d/2\) (with spatial dimension \(d=2\))

From SPDE parameters to range and variance

Key relationships (common INLA convention):

  • Practical range \[ \rho \approx \frac{\sqrt{8\nu}}{\kappa} \]
  • Marginal variance \[ \text{Var}\{S(s)\} = \sigma^2 \propto \frac{1}{\tau^2 \kappa^{2\nu}} \]

Interpretation:

  • larger \(\kappa\) \(\Rightarrow\) shorter range (rougher field)
  • larger \(\tau\) \(\Rightarrow\) smaller marginal variance

What INLA reports (hyperparameters)

In INLA output you will often see hyperparameters related to:

  • Range \(\rho\)
  • Stdev \(\sigma\)
  • Nugget / observation noise \(\tau_\epsilon\) (depending on model)

Even if the underlying SPDE uses \((\kappa,\tau)\), INLA/inlabru often provides summaries in the more interpretable scale:

  • range (km or m)
  • marginal sd

PC priors in practice (what you set in code)

In inla.spde2.pcmatern() you specify:

prior.range = c(r0, p)   # P(range < r0) = p
prior.sigma = c(s0, p)   # P(sigma > s0) = p

Discretising the SPDE

  • The spatial domain is discretised using a triangular mesh

  • The continuous field is approximated as: \[ S(s) \approx \sum_{k=1}^K w_k \psi_k(s) \] where:

  • \(\psi_k(s)\) are basis functions

  • \(w_k\) are random weights

Local support of basis functions ⇒ sparsity

From GRF to GMRF

  • The SPDE discretisation yields \[ \mathbf{w} \sim \mathcal{N}(0, Q^{-1}) \]

  • Precision matrix \(Q\) is sparse

  • This defines a Gaussian Markov Random Field (GMRF)

Key consequence:

  • Fast computation
  • Scales to large spatial problems

SPDE approach: summary

  • Specify a Matérn Gaussian random field
  • Use its equivalent SPDE representation
  • Approximate the SPDE on a triangulated mesh
  • Obtain a sparse GMRF representation
  • Perform fast Bayesian inference using INLA

When should you use INLA?

INLA is well suited for:

  • Spatial and spatio-temporal models
  • Latent Gaussian models
  • Large datasets with structured dependence

INLA is less suitable for:

  • Highly non-Gaussian latent structures
  • Very high-dimensional hyperparameter spaces
  • Models requiring full joint posterior samples

INLA and inlabru R packages

What is inlabru?

Key features

  • Formula-based model specification
  • Flexible integration with sf, sp, and raster

References

Diggle, Peter, and Emanuele Giorgi. 2019. Model-Based Geostatistics. CRC Press.
Diggle, Peter, Jonathan Tawn, and Rana Moyeed. 1998. “Model-Based Geostatistics.” Journal of the Royal Statistical Society: Series C 47: 299–350.
Lindgren, Finn, Håvard Rue, and Johan Lindström. 2011. “An Explicit Link Between Gaussian Fields and Gaussian Markov Random Fields: The Stochastic Partial Differential Equation Approach.” Journal of the Royal Statistical Society Series B: Statistical Methodology 73 (4): 423–98.
